How to test the quality of Color Coated Steel Coil?

Hey there! As a supplier of Color Coated Steel Coil, I've seen firsthand how important it is to ensure the quality of these products. After all, a high - quality color coated steel coil can last for years, providing reliable protection and a great aesthetic appeal. In this blog, I'll share with you some practical ways to test the quality of color coated steel coils.

Appearance Inspection

The first step in testing the quality of a color coated steel coil is a simple visual inspection. You don't need any fancy equipment for this one. Just take a good look at the surface of the coil.

Check for any visible scratches, dents, or bumps. These imperfections can not only affect the look of the final product but also weaken the protective coating, making the steel more prone to corrosion. A smooth and even surface is a good sign of a well - manufactured coil.

Also, pay attention to the color consistency. The color should be uniform across the entire coil. Any color variations, such as streaks or patches, could indicate problems with the coating process. If you notice significant color differences, it might be a red flag that the coil doesn't meet the quality standards.

Adhesion Test

The adhesion of the color coating to the steel substrate is crucial. A coating that doesn't adhere well will start to peel off over time, exposing the steel to the elements and leading to corrosion.

One common way to test adhesion is the cross - cut test. You can use a sharp blade to make a series of parallel cuts in the coating, followed by another set of cuts perpendicular to the first ones, creating a grid pattern. Then, apply a piece of adhesive tape over the grid and press it firmly. After that, quickly pull the tape off at a 90 - degree angle. If a large amount of the coating comes off with the tape, the adhesion is poor.

Another method is the impact test. You can use a small hammer or an impact tester to strike the coated surface gently. If the coating chips or flakes off easily, it shows that the adhesion isn't up to par.

Corrosion Resistance Test

Color coated steel coils are often used in outdoor applications, so their corrosion resistance is a key factor. There are several ways to test this.

The salt spray test is a widely used method. In this test, the steel coil sample is placed in a chamber where a salt - water mist is continuously sprayed. The length of time the sample can withstand the salt spray without showing signs of corrosion is an indicator of its corrosion resistance. A high - quality color coated steel coil should be able to resist corrosion for a long time in this test.

You can also conduct a natural exposure test. Simply expose a sample of the coil to the outdoor environment for a certain period, say a few months or even a year. Observe how the coating holds up against the elements, including rain, sunlight, and humidity. If you notice rust spots or significant degradation of the coating, it means the corrosion resistance is not good.

Flexibility and Ductility Test

Color coated steel coils may need to be bent or formed during installation. So, they should have good flexibility and ductility.

You can perform a bending test. Take a small sample of the coil and bend it at a specific angle, following the relevant standards. If the coating cracks or peels during the bending process, it indicates that the coil lacks the necessary flexibility.

For ductility, you can use a tensile test. Pull the sample until it breaks and measure the elongation at break. A higher elongation at break value means the steel has better ductility, which is important for applications where the coil needs to be stretched or deformed.

Gloss and Color Fastness Test

The gloss of the color coating affects the appearance of the steel coil. You can use a gloss meter to measure the gloss level at different points on the coil. Consistent gloss across the surface is a sign of a well - finished product.

Color fastness is about how well the color retains its original appearance over time, especially when exposed to sunlight. You can use a xenon arc lamp to simulate sunlight exposure. Expose the sample to the lamp for a certain period and then compare the color before and after the exposure. If there is a significant color change, the color fastness is poor.

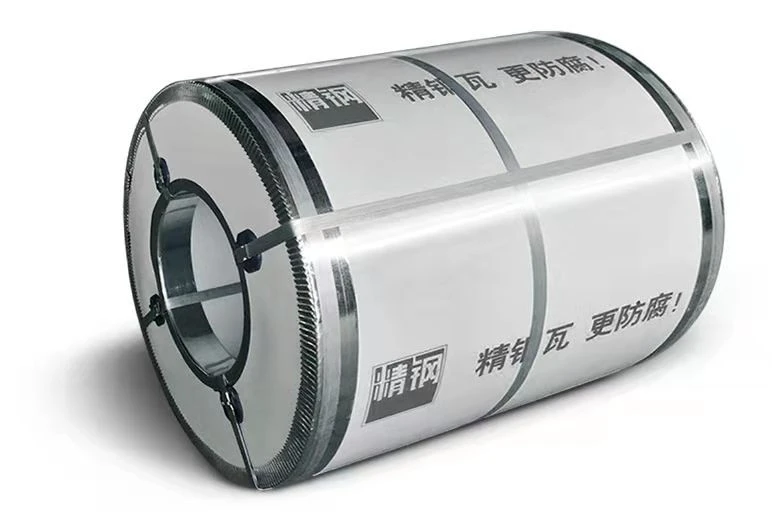

Types Of Metal Roofing Sheets factory Insulated Corrugated Metal Roof Panels suppliers

Thickness Measurement

The thickness of both the steel substrate and the color coating is important. An improper thickness can affect the strength, durability, and performance of the coil.

You can use a magnetic thickness gauge to measure the thickness of the coating on a magnetic steel substrate. For the steel substrate thickness, a micrometer can be used. Make sure the measured thicknesses are within the specified range. If the coating is too thin, it may not provide adequate protection, while a too - thick coating can lead to cracking and other issues.

Surface Hardness Test

The surface hardness of the color coating can affect its resistance to scratches and abrasion.

A pencil hardness test is a simple way to measure this. You can use pencils of different hardness levels, starting from the softest. Press the pencil against the coating at a 45 - degree angle and push it forward for a short distance. If the coating is scratched by a particular pencil, the hardness of the coating is lower than that of the pencil. A higher - hardness coating is generally more resistant to scratches.

Now, if you're in the market for high - quality Color Coated Steel Coils, you've come to the right place. We offer a wide range of products, including Heavy Gauge Corrugated Steel, Insulated Corrugated Metal Roof Panels, and Types Of Metal Roofing Sheets. Our coils are rigorously tested to ensure they meet the highest quality standards.

If you're interested in our products or have any questions about color coated steel coils, don't hesitate to reach out to us. We're always happy to have a chat and discuss your specific needs. Whether you're a contractor working on a large - scale project or a homeowner looking for a reliable roofing solution, we've got you covered.
